Brand Name : WeSeW
Model Number : kaixi00
Certification : CE,UL
Place of Origin : China
MOQ : 1 pc
Price : US$1200~US$50,000/set
Payment Terms : T/T, Western Union
Supply Ability : 1000000pcs per month
Delivery Time : 10-20 working day
Packaging Details : Wooden Case
Material : Stainless Steel
Material Feature : Heat Resistant, Fire Resistant
Feeding Accuracy : High
Product Type : Industrial Equipment
Specification : Customized
Voltage : 220V
Structure : Conveyor System
Applicable Industries : Manufacturing Plant, Energy & Mining
custom Automatic Cement Powder Inclined Auger Screw Conveyor Feeder Cement Screw Portable Conveyor for Truck Unloading
Belt Material | carbon steel |
Material | Stainless Steel, carbon steel |
Special Feature | Durable |
Dimension(L*W*H) | Customer Request |
Layer | 1 Layer |
Speed | 1500 rpm |
Applicable Industries | Machinery Repair Shops, Construction works, Energy & Mining |
Warranty | 1 Year |
Product name | Cement Flexible Screw Conveyor Price Automatic Screw Flight |
Usage | Material Transimission |
Application | Construction |
Color | Customers' Request |
Installation | Engineer's Guide |
Length | Customer's Option |
Installation angle | 0~60 |
Cement Flexible Screw Conveyor Price Automatic Screw Flight uses revolving screw to move the conveyer material in fixed casing, the bearings of head and tail are moved to shell, hanger bearing adopts sleeve bearing, which have dustproof sealing device, bearing bush usually adopts powder metallurgy,convey concrete adopts felt bushing, hanger shaft and screw shaft are connected by slider.
Model | Diameter (mm) | Rated speed (r/min) | Reference capacity (m³/h) | Motor power (Kw) | Admission biggest gradient (o) |
LS114 | 114 | 84-130 | 0.1-1 | 2.2-18.5 | ≤60 |
LS133 | 133 | 1-2 | |||
LS159 | 159 | 3-5 | |||
LS219 | 219 | 5-15 | |||
LS245 | 245 | 15-20 | |||
LS273 | 273 | 20-30 | |||
LS315 | 315 | 28-40 | |||
LS400 | 400 | 35-45 | |||
LS500 | 500 | 45-70 | |||
LS600 | 600 | 60-100 |
Product features
1.The large bearing capacity, safe and reliable.
2.Strong adaptability, easy installation and maintenance, long service life.
3.The machine is small in size, high speed, ensure rapid delivery uniformity.
4.The discharge end is equipped with cleaning device, low noise, strong adaptability, in and out of the mouth position arranged flexibly.
5.Good sealing, shell made of seamless steel tube end use flange connection each other as a body, good rigidity.
![]() |

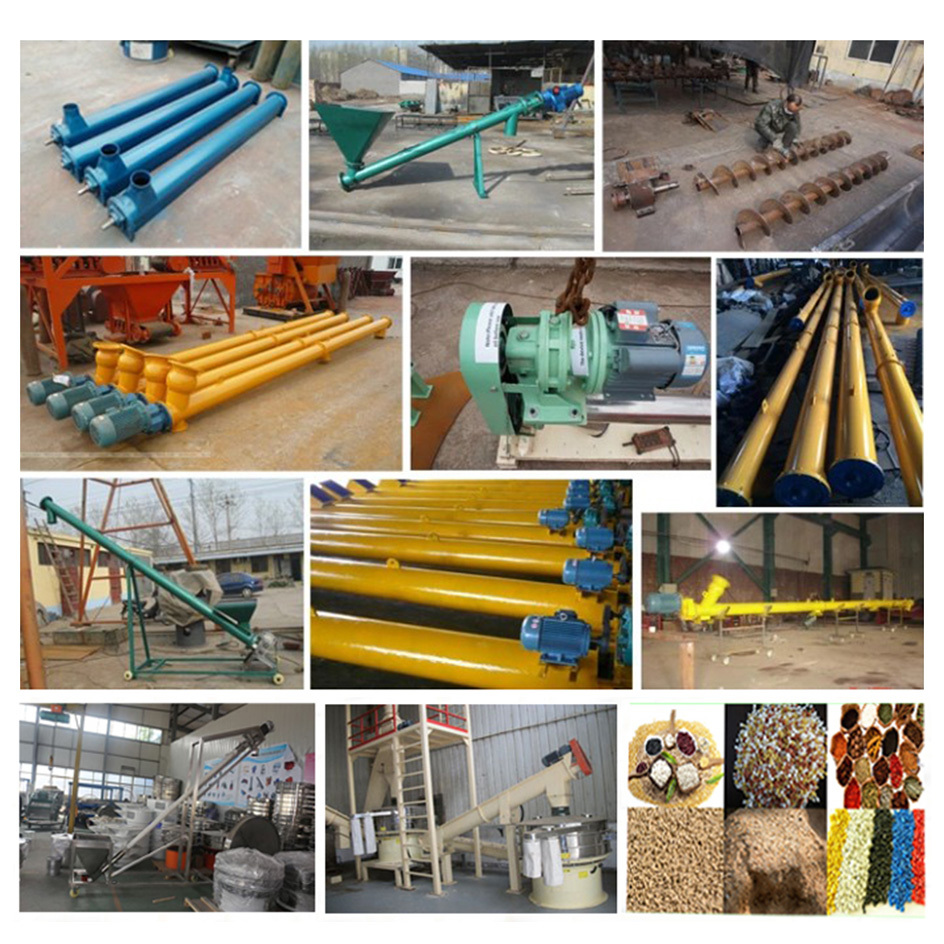

custom Automatic Cement Powder Inclined Auger Screw Conveyor Feeder Cement Screw Portable Conveyor for Truck Unloading Images |
